Scandi Granny Flat ~ Madeira V0 90m²
Madeira V0 90m²
Category: Granny Flat
Typology: Residential Build
Bedroom: 1
Bathrooms: 1
Total Size: 90m2

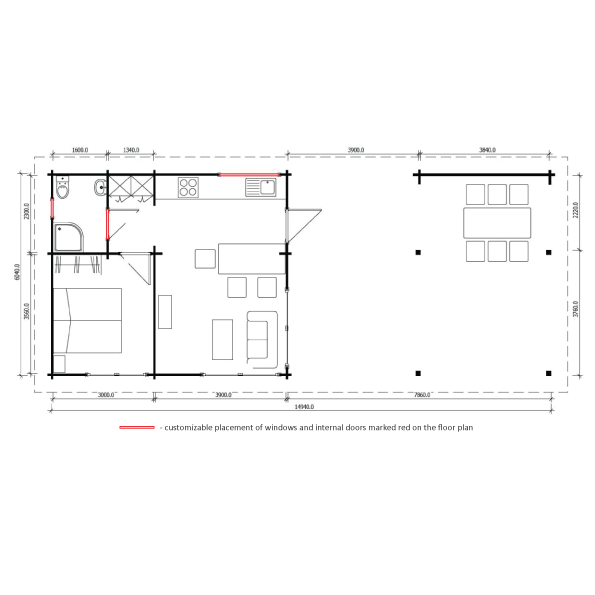

Madeira Floor Plan
Featuring a huge outdoor space conveniently step away from the spacious kitchen and lounge room, Madeira granny flat is perfect for hosting the people you love.
Enjoy comfy and stylish get-togethers with your nearest and dearest, family and friends. Natural timber and triple glazing will provide you with comfortable living, so relax and sleep tight after a fabulous night.
- Set of drawings including footings plan and engineering for the building
- Structure with external & internal walls, kiln-dried laminated 120mm Nordic Spruce
- Structural tie-down system - 15 steel rods Roof structure 6 load bearing laminated rafters thickness 60mm, h = 140mm
- 19mm T&G ceiling boards
- Ceiling trimmings Fascia boards 4 laminated timber posts 115x115mm with adjustable legs
- Timber covers for all external corner nibs
- External Double-glazed uPVC doors and windows, top quality REHAU profile, white colour
- 1 External tilt&slide or French doors (1900 x 2110mm, safety DG 4/16/4mm)
- 3 tilt&turn window (1200 x 1070mm, DG 4/16/4mm)
- 1 tilt&turn window (550 x 610mm, safety DG 4/16/4mm), customizable placement of one 1200 x 1070mm, 550 x 610mm windows and one internal door, marked red on the floor plan
- Timber architraves and fitted fly screens for all windows 2 internal timber doors 9 pre-drilled holes for electricity
- All hardware Drawings for assembly with all boards marked
Flexible options are sourced locally and can be ordered from our Authorized supplier, your local builder. The builder will customize the options to suit your taste and budget.
