SCANDI Granny Flat ~ Panorama Mono Pitch Roof 30m²

  • Scandi Panorama Mono Pitch

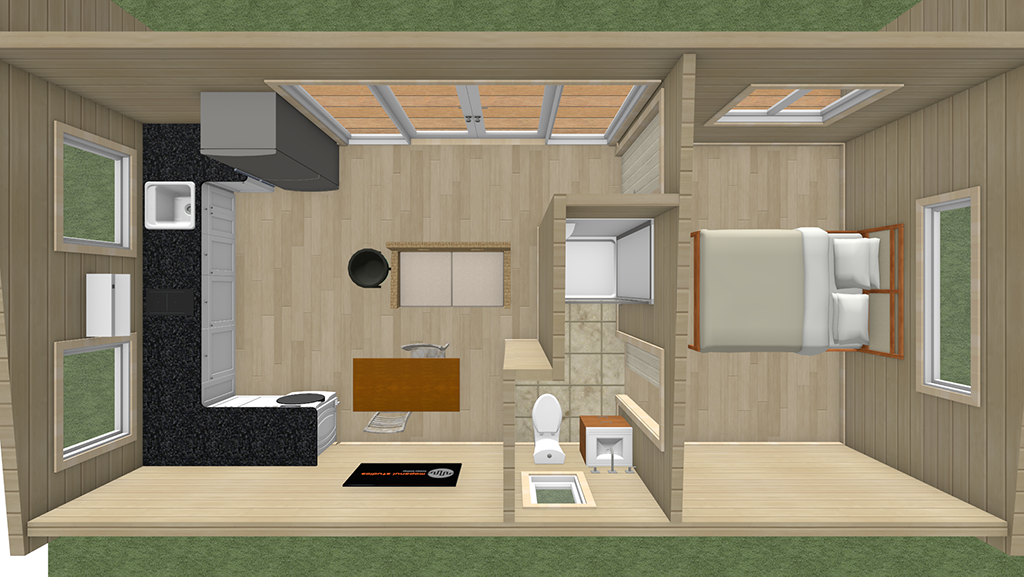

  • Panorama-mono8
  • Panorama-mono2
  • Panorama-mono3
  • Panorama-mono4
  • Panorama-mono5
  • Panorama-mono6
  • Panorama-mono7

Panorama Gable Roof 30m²

Sicilia Panorama 30 (8.3 m x 3.9 m) is a lifestyle changing addition to any home.
This 1 bedroom cabin is a practical and beautiful space ideal for stay-at-home children Family Home, Parents Retreat, Teenage Studio or a Granny Flat.

Packed with superb features such as Panoramic windows, triple glazing on French doors and windows, this studio is open, airy and full of natural light. Sicilia Panorama 30 can be built with the sidewalls on the veranda or without.  Constructed on a prepared level base, Sicilia timber studio can be assembled in 3 days.

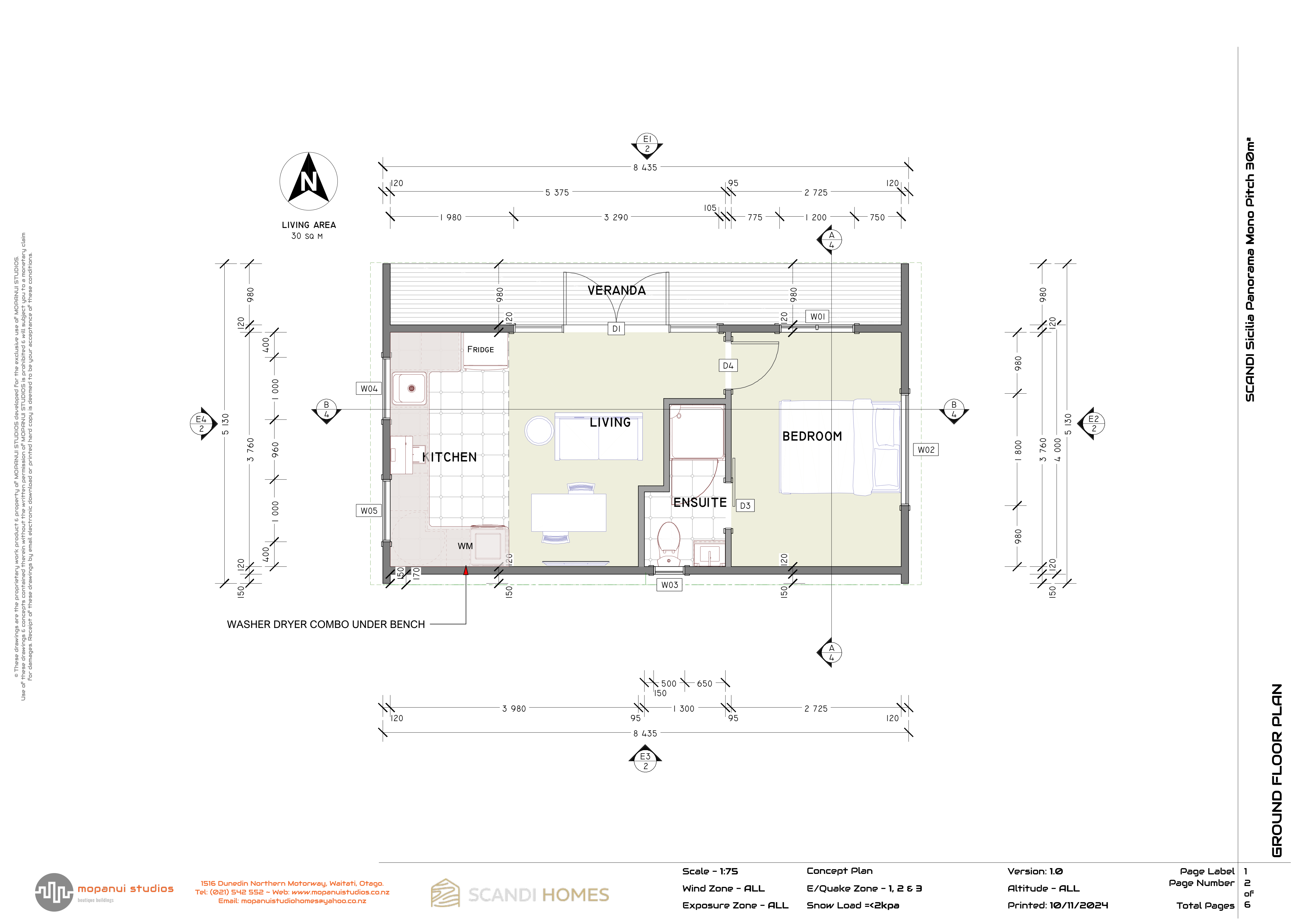

  • panorama-mono-plan1

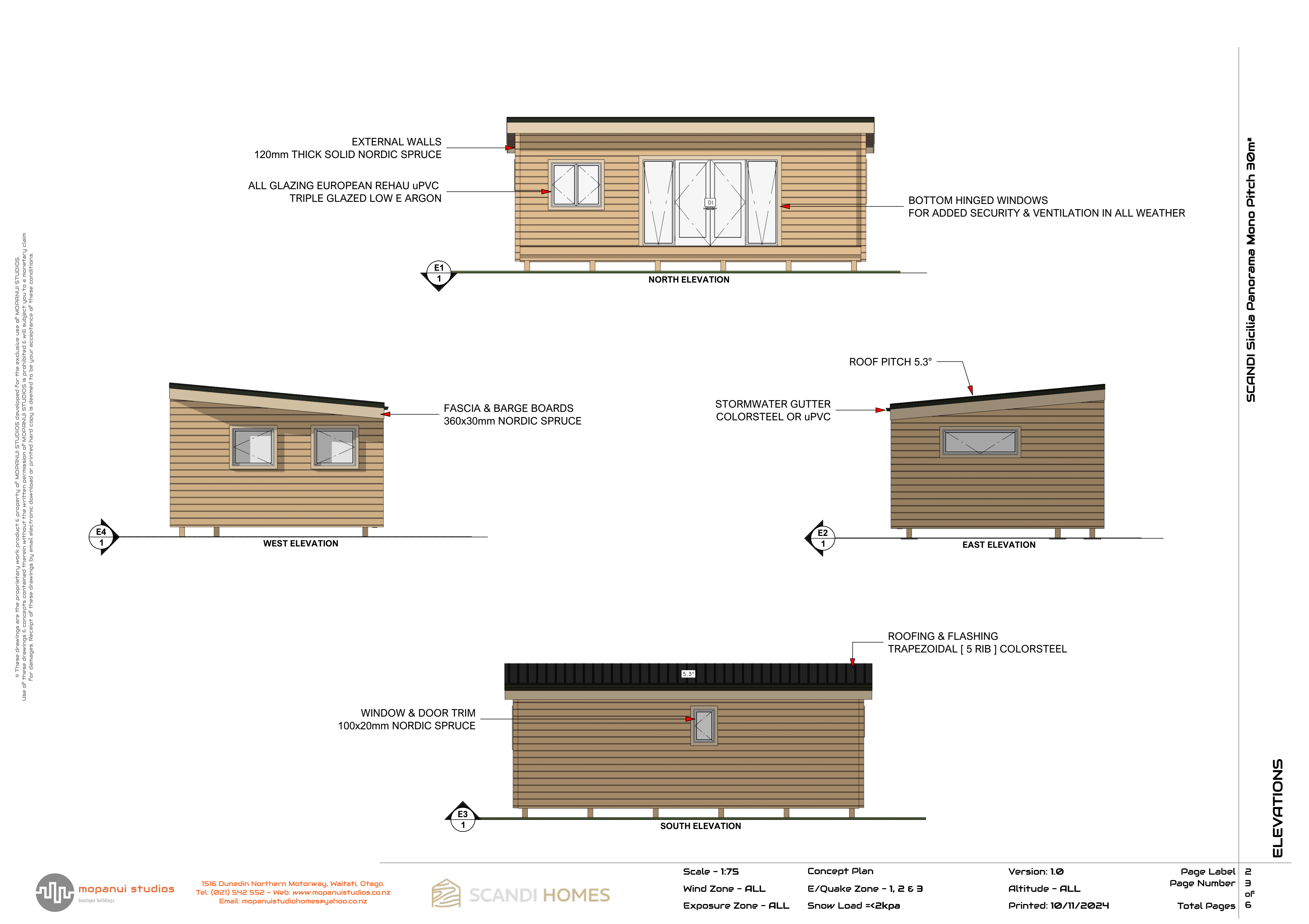

  • panorama-mono-elevations1

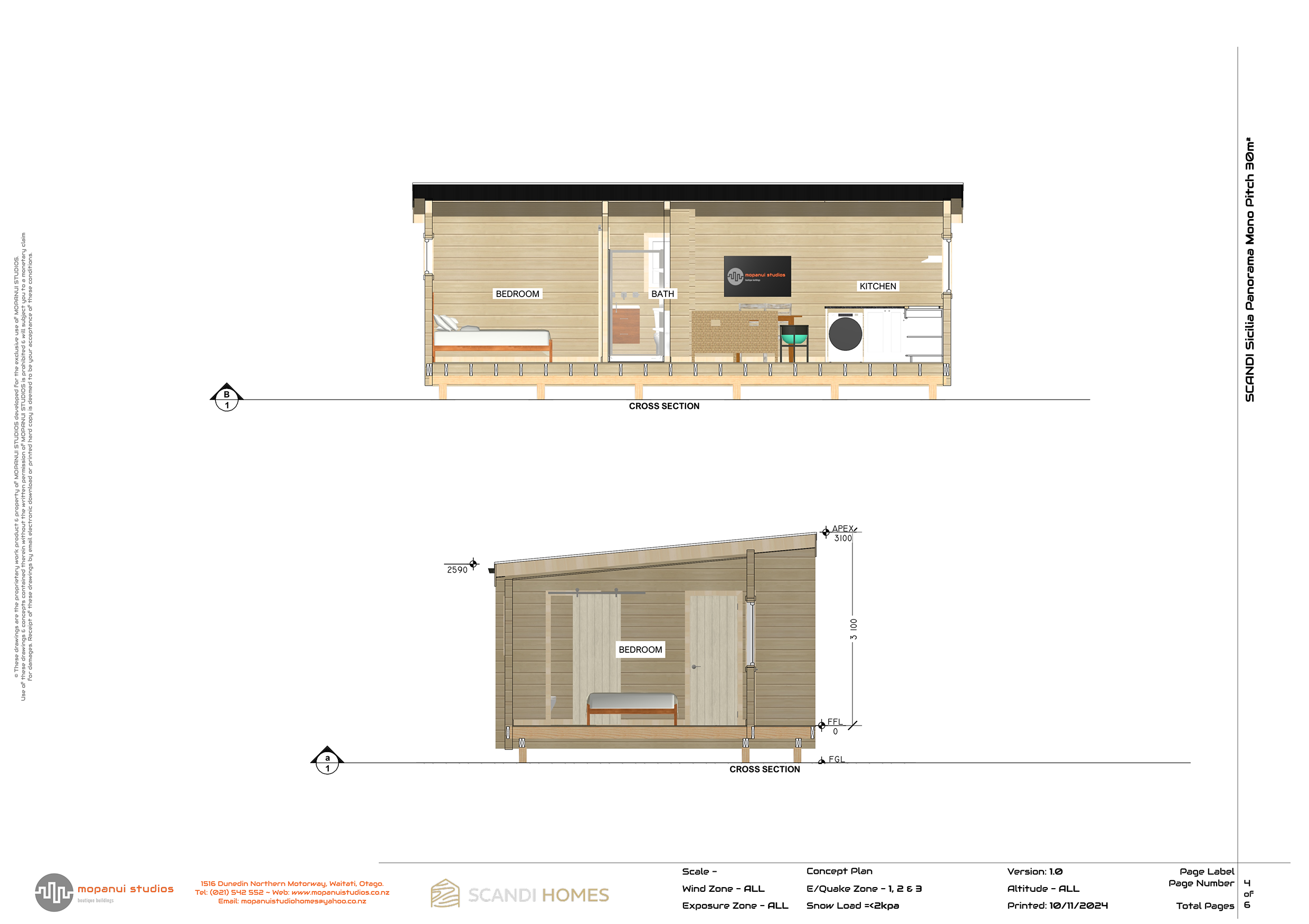

  • panorama-mono-cross-sections1

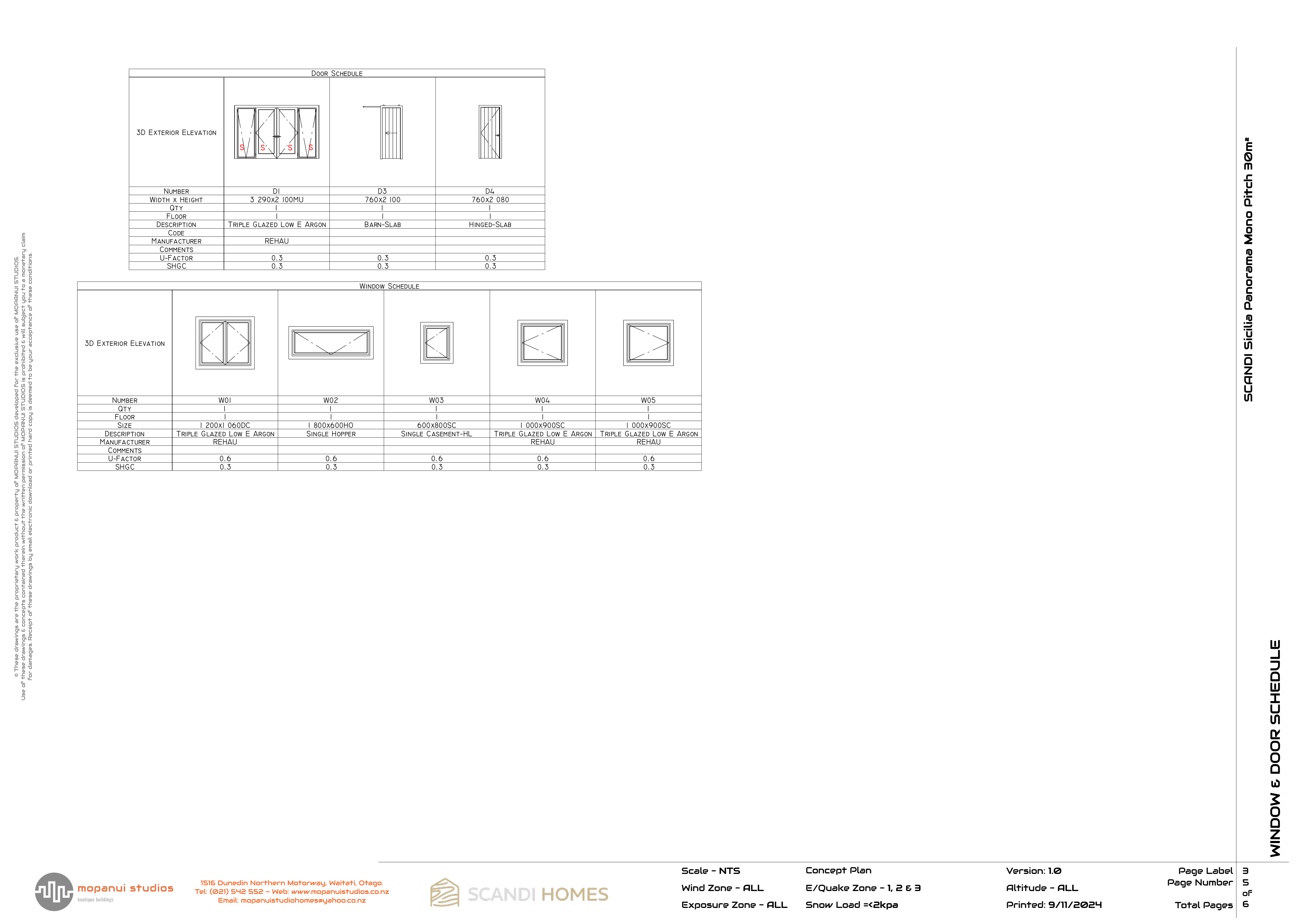

  • panorama-mono-schedules

Our beloved Sicilia Panorama cabin is now available in a 30m² size in two variants, mono pitch roof and  gable roof..

Packed with superb features such as triple glazing on all doors & windows, & superb grade 120 mm solid timber walls, this studio is ideal for stay-at-home children's Family homes, Parents' Retreat, Teenage studios or a Granny Flat.

  • Wall Thickness: 120mm
  • Triple Glazed uPVC Windows & Doors

  • Packaging: 1 or 2 Pallets
  • Weight: 3,000Kg
  • Set of drawings including footings plan & engineering for the building.
  • Factory treated superior grade Nordic spruce
  • Structural tie-down system - 13 stainless steel rods
  • Roof structure of 8 load bearing rafters 19mm T&G ceiling boards
  • Ceiling trimmings Fascia boards Timber covers for all external corner nibs
  • External triple-glazed timber doors and windows
  • 1 External french door (1400 x 2100mm, DG 4/16/4mm)
  • 2 tilt & turn window (1000 x 1700mm, DG 4/16/4mm)
  • 3 tilt & turn long vertical window (560 x 2100mm, DG 4/16/4mm), one to be installed to your preferred location 1 window (560 x 620mm, DG 4/16/4mm)
  • Timber architraves for all doors and windows 2 internal timber doors 5 pre-drilled holes for electricity
  • All hardware Drawings for assembly with all boards marked

Flexible options are sourced locally and can be ordered from our Authorized supplier, your local builder. The builder will customize the options to suit your taste and budget.
  • Custom size veranda/decking
  • Timber Handrail and external steps
  • Timber or steel sub-floor or a slab base
  • Colorbond roofing in colour of your choice Gutters and down pipes
  • Flooring of your choice
  • Electrical Plumbing Kitchen fit out
  • Bathroom fit out Additional Windows Painting

3D Viewer

View Scandi 30 Square Meter House in Chief Architect’s 3D Viewer.
